    (02 series)Double-row spherical type

    CHARACTERISTIC OF STRUCTURE,PERFORMANCE AND APPLICATION
    The double-row Ball slewing beraring has three seat-rings.The steel balls and the spacers may be directly arranged into the upper and lower races.Two rows of steel balls with different diameters are fitted according to the force bom.
    Such open mode fitting features extraordinary convenience.The load angles of both upper and lower races are 90?which enable the bearing to bear large axial force and the tipping moment.
    When the radial force is larger than 1/10 of the axail force the races should be newly designed.
    As the axle and the dimension of the double-row ball slewing bearing are rather large,the bearing construction is sturdy ,hence it is especially suitable for tower cranes which require working radius over medium range,mobile cranes and loading and unloading machines.

    No.

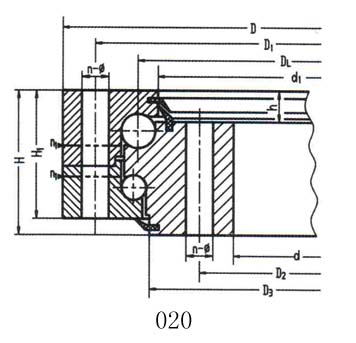

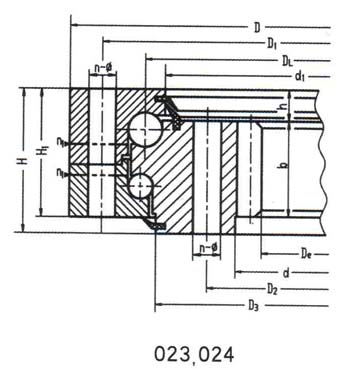

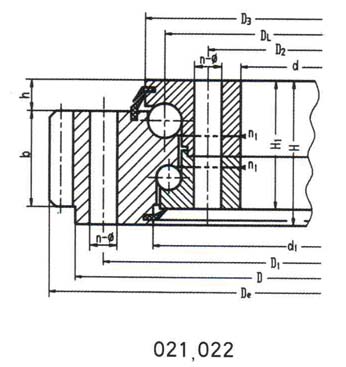

    Basic Type

    Configuration

    size

    Mounting size

    sturctural

    Gear

    date

    Ext Gear

    Int Gear

    weight
    kg

    Toothless
     DL
    mm

    Ext Toothless
     DL
    mm

    INt Toothless
     DL
    mm

    D

    d

    H

    D1
    mm

    D2
    mm

    dn1
    dn2
    mm

    dm1
    dm2
    mm

    L
    mm

    n

    n1

    H1

    h

    b
    mm

    m
    mm

    da
    mm

    Z

    da
    mm

    Z

    1

    020.25.500

    021.25.500

    023.25.500

    616

    384

    106

    580

    420

    18

    M16



    20

    4

    96

    26

    60

    5

    644

    126

    357

    72

    100

    022.25.500

    024.25.500

    6

    646.8

    105

    350 .4

    59

    2

    020.25.560

    021.25.560

    023.25.560

    676

    444

    640

    480

    5

    704

    138

    417

    84

    115

    022.25.560

    024.25.560

    6

    706.8

    115

    410.4

    69

    3

    020.25.630

    021.25.630

    023.25.630

    746

    514

    710

    550

    24

    6

    790.8

    129

    482.4

    81

    130

    022.25.630

    024.25.630

    8

    790.4

    96

    475.2

    60

    4

    020.25.710

    021.25.710

    023.25.710

    826

    594

    790

    630

    6

    862.8

    141

    560.4

    94

    140

    022.25.710

    024.25.710

    8

    862.4

    105

    555.2

    70

    5

    020.30.800

    021.30.800

    023.30.800

    942

    658

    124

    898

    702

    22

    M20



    30

    6

    114

    29

    80

    8

    982.4

    120

    619.2

    78

    200

    022.30.800

    024.30.800

    10

    988

    96

    614

    62

    6

    020.30.900

    021.30.900

    023.30.900

    1042

    758

    998

    802

    8

    1086 .4

    133

    715.2

    90

    250

    022.30.900

    024.30.900

    10

    1088

    106

    714

    72

    7

    020.30.1000

    021.30.1000

    023.30.1000

    1142

    858

    1098

    902

    36

    10

    1198

    117

    814

    82

    300

    022.30.1000

    024.30.1000

    12

    1197.6

    97

    796.8

    67

    8

    020.30.1120

    021.30.1120

    023.30.1120

    1262

    978

    1218

    1022

    10

    1318

    129

    924

    93

    340

    022.30.1120

    024.30.1120

    12

    1317.6

    107

    916.8

    77

    9

    020.40.1250

    021.40.1250

    023.40.1250

    1426

    1074

    160

    1374

    1126

    26

    M24



    40

    5

    150

    39

    90

    12

    1497.6

    122

    1012.8

    85

    580

    022.40.1250

    024.40.1250

    14

    1495.2

    104

    1013.6

    73

    10

    020.40.1400

    021.40.1400

    023.40.1400

    1576

    1224

    1524

    1272

    12

    1641.6

    134

    1156.8

    97

    650

    022.40.1400

    024.40.1400

    14

    1649.2

    115

    1153.6

    83

    11

    020.40.1600

    021.40.1600

    023.40.1600

    1776

    1424

    1724

    1476

    45

    14

    1845.2

    129

    1349.6

    97

    750

    022.40.1600

    024.40.1600

    16

    1852.8

    113

    1350.4

    85

    12

    020.40.1800

    021.40.1800

    023.40.1800

    1976

    1624

    1924

    1676

    14

    2055.2

    144

    1545.6

    111

    820

    022.40.1800

    024.40.1800

    16

    2060.8

    126

    1542.4

    97

    13

    020.50.2000

    021.50.2000

    023.50.2000

    2215

    1785

    190

    2149

    1851

    33

    M30



    48

    8

    178

    47

    120

    16

    2300.8

    141

    1702.4

    107

    1150

    022.50.2000

    024.50.2000

    18

    2300.4

    125

    1699.2

    95

    14

    020.50.2240

    021.50.2240

    023.50.2240

    2455

    2025

    2389

    2091

    16

    2540.8

    156

    1942.4

    122

    1500

    022.50.2240

    024.50.2240

    18

    2552.4

    139

    1933.2

    108

    15

    020.50.2500

    021.50.2500

    023.50.2500

    2715

    2285

    2649

    2351

    56

    18

    2804.4

    153

    2203.2

    123

    1700

    022.50.2500

    024.50.2500

    20

    2816

    138

    2188

    110

    16

    020.50.2800

    021.50.2800

    023.50.2800

    3015

    2585

    2949

    2651

    18

    3110.4

    170

    2491.2

    139

    1900

    022.50.2800

    024.50.2800

    20

    3116

    153

    2488

    125
